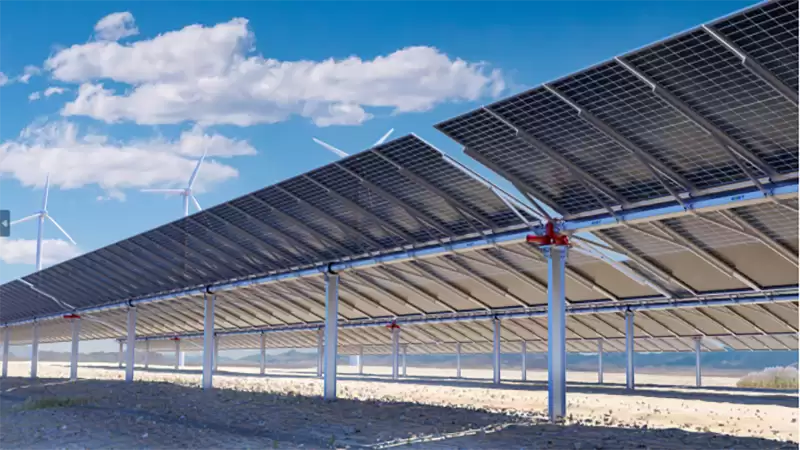

EXCEED 2p Solar Tracker

EXCEED 2P is a single-axis solar tracker with independent rows (2 modules in portrait) for large-scale plants. The patented octagonal torque tube offers up to 35% more rigidity, reduces steel and foundations, accelerating installation and decreasing CAPEX. With astronomical algorithm and closed-loop sensors (precision ≤1°), it operates in snow/hail/flood/cleaning/maintenance modes. IP65, 1000/1500 V, consumption 0.05–0.08 kWh/day per tracker, LoRa/ZigBee/RS485 communication and compatibility with cleaning robots. Colibri One support (ESET Metavast).

Adicionar ao orçamento

Category: Trackers Tags: 2P solar tracker, astronomical algorithm, ESET Metavast, EXCEED 2P, galvanized steel, IP65, octagonal torque tube Brand: ESET MetaVast

Description
Reviews (0)

EXCEED 2P – Solar Tracker with Independent Rows: Robustness, efficiency, and intelligent control for large-scale solar projects.

The EXCEED 2P is a single-axis horizontal tracking system, developed to maximize energy generation efficiency in large-scale photovoltaic plants. Designed with independent rows and reinforced structure, the equipment supports two vertical modules per row, offering reliable performance even in challenging environmental conditions.

The innovative design includes a patented octagonal torque tube, which offers greater resistance to torsion and bending, reducing steel usage and the need for deep foundations — resulting in faster installation and lower structural costs.

Technical Highlights

Stability and Reliability:

Structure with asymmetric octagonal tube, ensuring 35% more resistance than conventional rectangular profiles.
Locking and actuation at multiple points, improving rigidity and dynamic response against wind.
Tested in wind tunnel (CPP), with simulations of load, vibration, and pressure distribution for field validation.

Efficient Drive System:

Motorization with high-precision worm gear, ensuring stable power and durability.
Extremely low failure rate, with no torque loss over time.

Intelligent Control Technology:

Astronomical algorithm with closed-loop position sensors.
Tracking precision of up to 1 degree, with automatic adjustment according to topography.
Mobile app for monitoring, adjustments, and quick maintenance in the field.
Programmable operation modes: snow, hail, flood, cleaning, and maintenance.

Easy Assembly and Maintenance:

Polymer wedge bearings, which reduce material usage and simplify installation.
Reinforced connections with coupling joints and carriage bolts.
Compatible with cleaning robots through adjustable angles.

Technical Specifications

Item	Description
Type	Single-axis horizontal tracker, independent row
Module configuration	2 vertical modules (2P) per structure
Tracking range	±60°
Power supply	Via string (standard), AC or autonomous system
Daily consumption	0.05 to 0.08 kWh per tracker
Compatibility	All types of solar modules
Protection rating	IP65
DC Voltage	1000 V / 1500 V
Structural material	Hot-dip galvanized steel / ZAM
Operating temperature	-20°C to 60°C (optional -40°C)
Terrain slope	Up to 20% (N-S), no limit (E-W)
Operation modes	Manual, Snow, Flood, Cleaning, Maintenance
Communication	LoRa, ZigBee, RS485
Power backup	Lithium battery (powered by string or external source)

Proven Performance

The EXCEED 2P combines robust structure, intelligent drive, and precise control to ensure high energy production, operational safety, and project versatility — making it an ideal solution for large solar plants with varied terrain or severe weather conditions.

Colibri One, as an official partner of ESET Metavast in Brazil, offers complete technical support and assistance in all implementation phases.

📩 Contact us to learn more about how EXCEED 2P can elevate the performance of your solar project.
